VME-9081

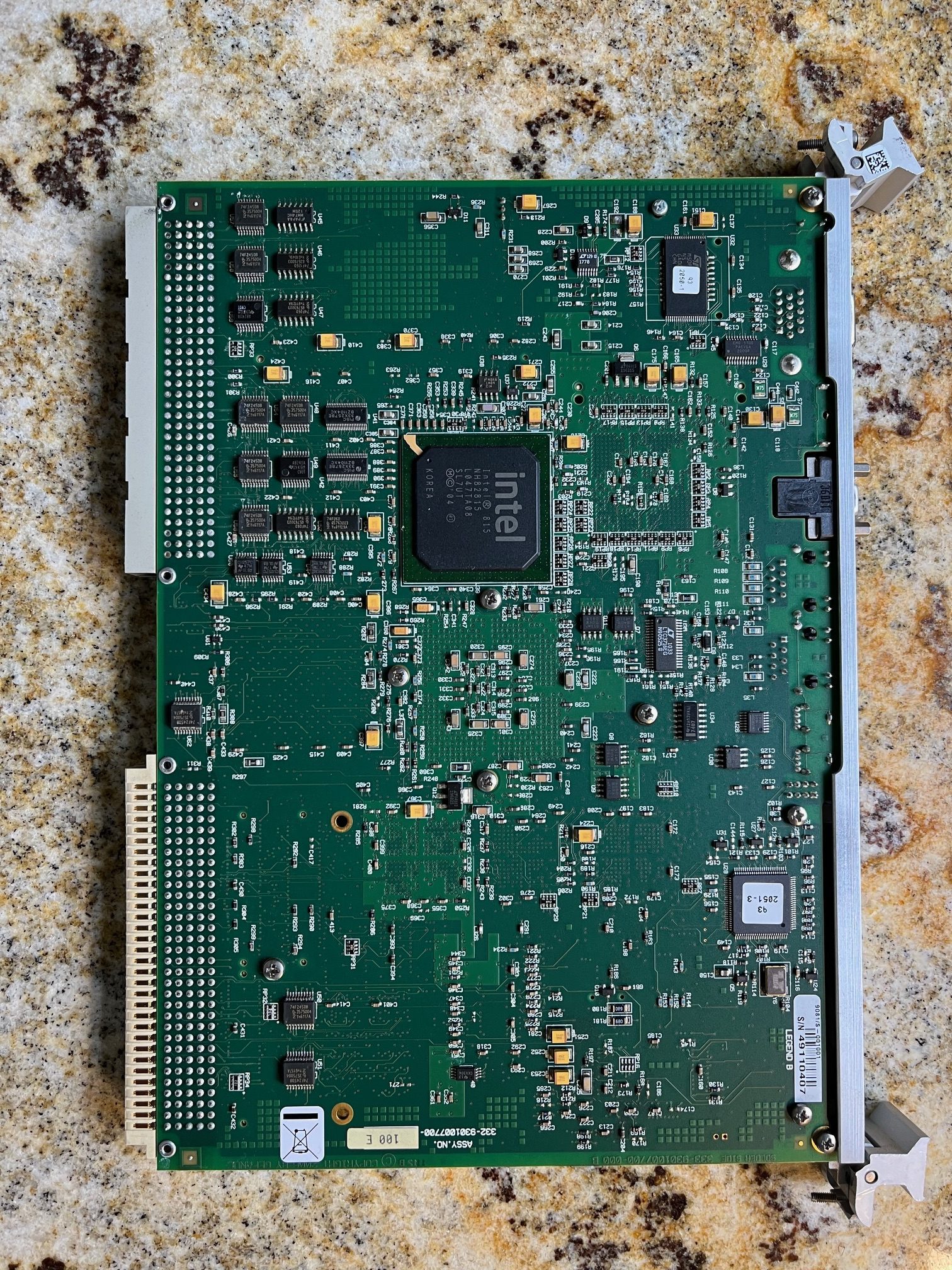

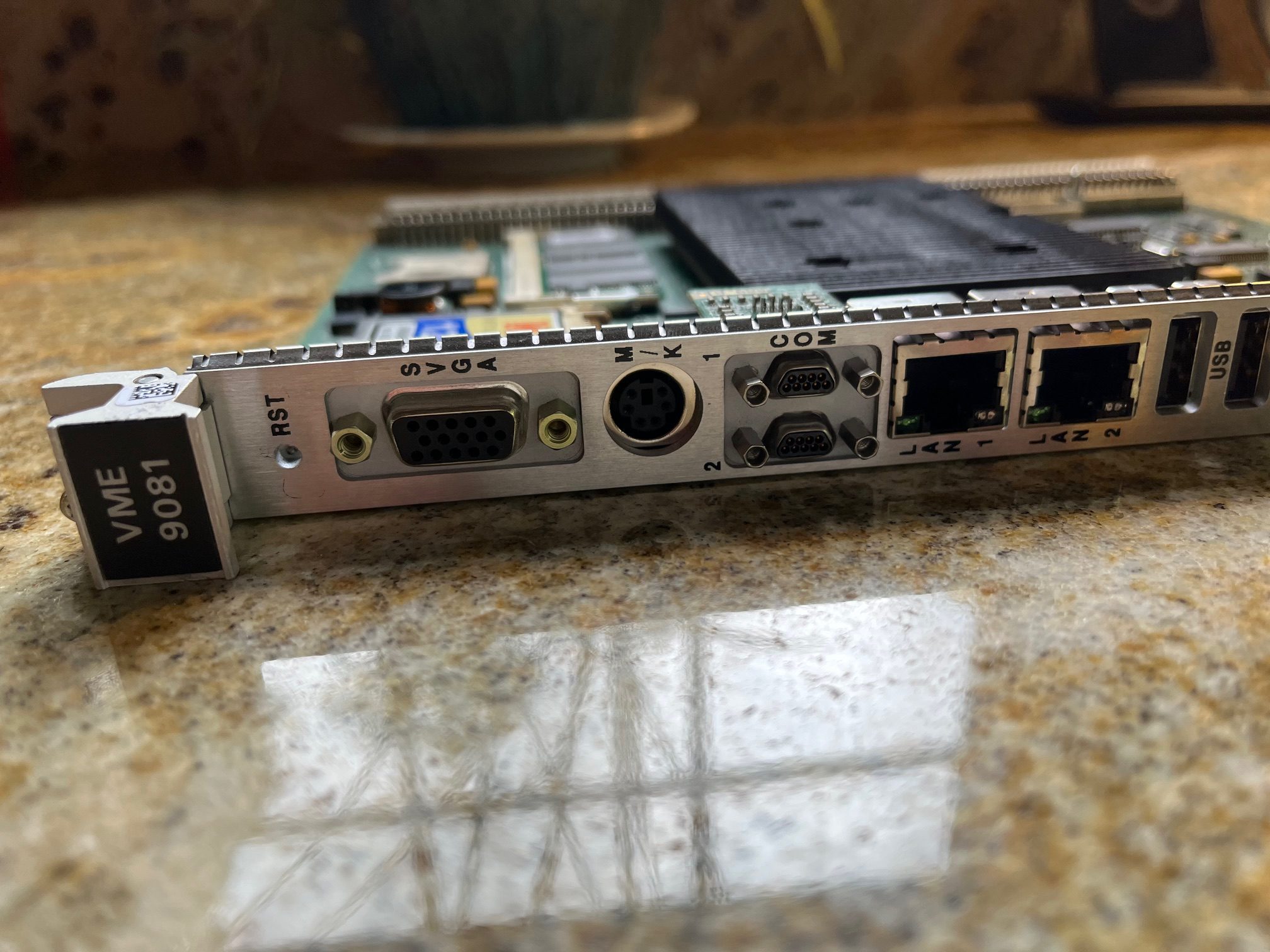

VME-9081, GE/ABACO/VMIC VME CPU BOARD

4 IN STOCK

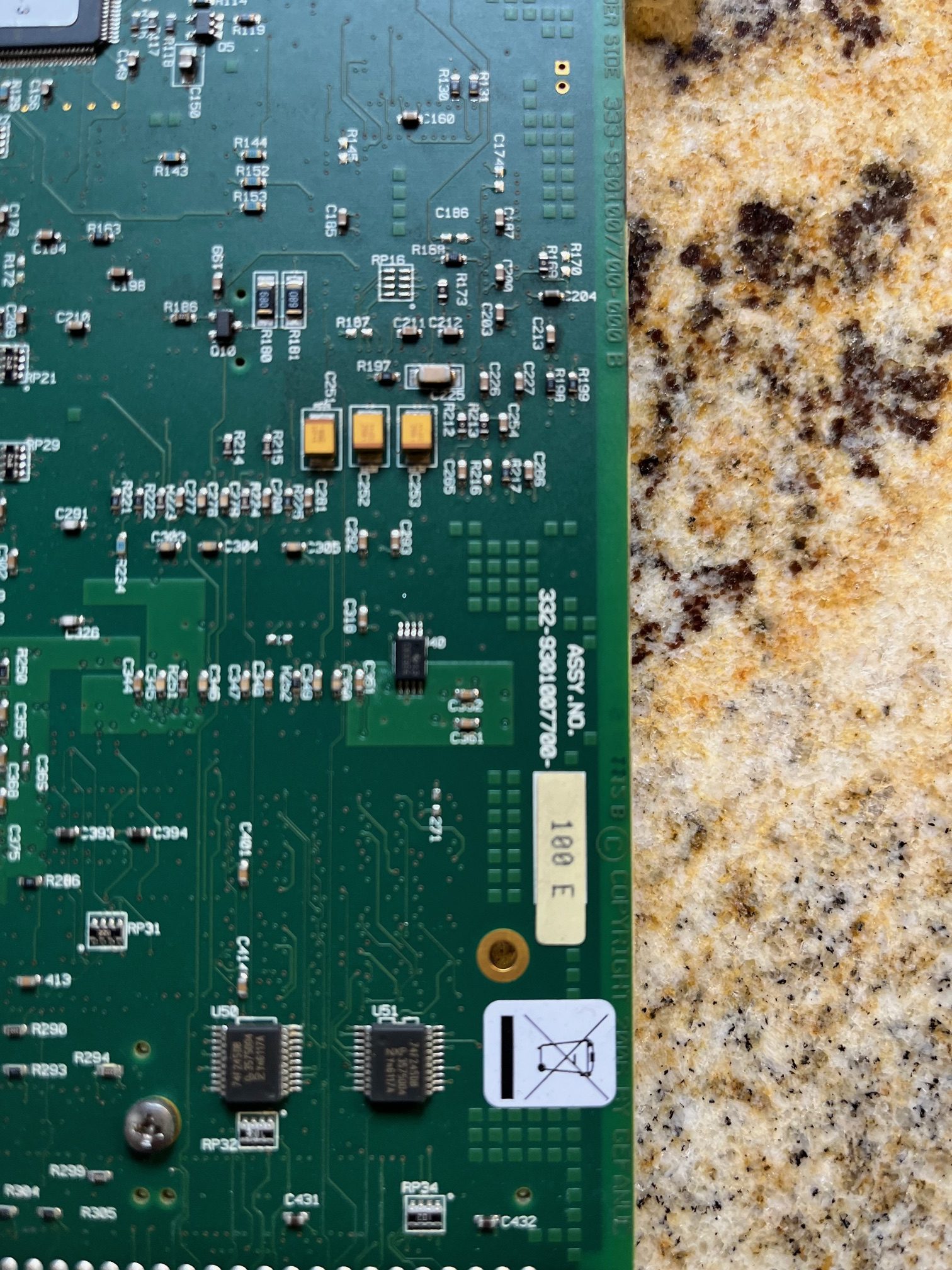

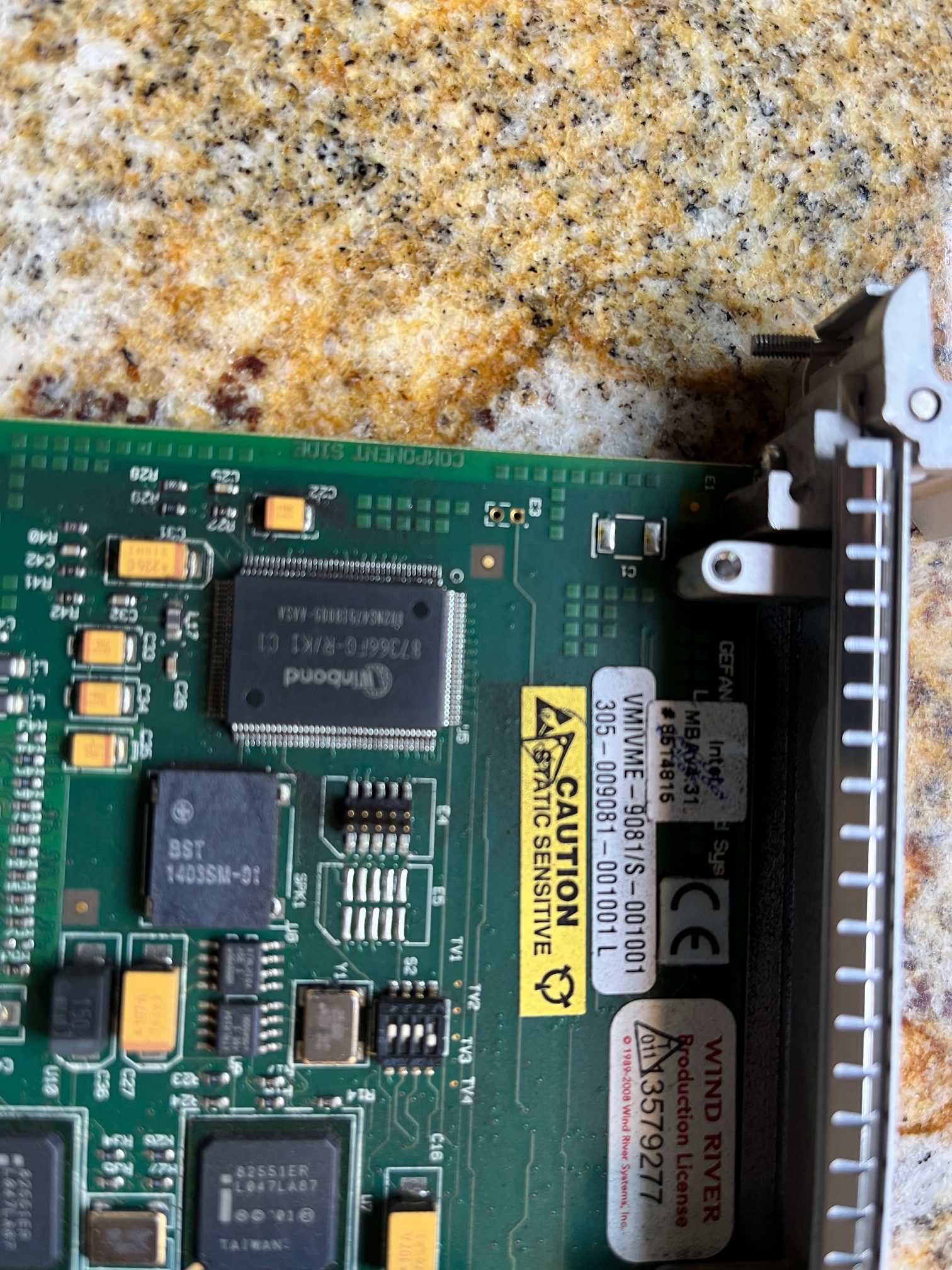

VME-9081, 332-9301007700-100E, 305-009081-001001, VMIVME-9081/S-001001

• Intel® Ultra Low Voltage Celeron® 1.07 GHz processor
• 128 MByte SODIMM
• Host interface options:- Abaco’s Reflective Memory (5550, 5576, 5565 and 5588)- 10/100 Mbit Ethernet- Embedded (IIOC as slave CPU)
• Firmware provides all required support for scanning inputs,
updating outputs, EU and data-type conversions, fault
detection, fault isolation, and error reporting
• Optional host software support utilities
I/O point manager- Report generator- Configuration downloader- Real time interface software- Source code available in C
• Supports a wide variety of Abaco’s General Purpose I/O
Boards
• Available CRT-based control panel
• Low cost expansion
